The most important factor, especially in the field of calibration of analytical instruments is periodic calibration to specific standards in order to ensure exact results. We offer from simple binary mixture to more complex multi component mixtures with degree of accuracy and reliable delivery schedule to ensure complete customer satisfaction. Proton has its unit in Taloja, Navi Mumbai which manufactures these calibration gases.

Proton supplies an extensive range of calibration standards according to individual customer requirements comprising of various components listed below. However we would be pleased to receive enquiries even for unlisted components. Proton is always striving to increase the width and depth of its product lines.

Quality

The quality of calibration standards depends upon three specific criteria.

  • Accuracy
  • Traceability
  • Stability

Accuracy

The accuracy of a calibration standard has two elements.

  • -------- the filling accuracy
  • -------- the analytical accuracy

If a mixture is prepared with a nominal component concentration of 5% and a filling tolerance of +/- 10% then the supply will be a mixture between 4.5% and 5.5% the actual concentration. Having prepared the mixture will then be certified with an accuracy of +/- 2% so that if during analysis by Proton the analytical instrument gives a result of 5.2% concentration then Proton certifies that the mixture will have concentration of between 5.1% to 5.3%.

Method of analysis : Once filled the cylinders are analyzed and checked.

  • ----- so that the mixture composition is correct
  • ----- so that the product purity is within specification

Proton follows the ISO 6143 standard, the degree of accuracy of the analysis determines the grade of the product sold and the closer the accuracy to the absolute concentration the more difficult and hence more expensive the product. Proton will choose the best combination of filling and analytical methods to meet customer specification.

Production of Calibration Gases

The production of calibration gases follows the flow chart below. A simpler flow chart is followed for industrial mixtures where the accuracy is not that important. The selection of production method depends on which components are to be included in the mixture and the accuracy required on the certificate.

The correct choice of cylinder material and valve, together with special internal treatment of the cylinder, are essential to achieve stable mixtures.

There are three different production methods for gas mixtures

  • Gravimetric: International standard 6142
    The gravimetric method, where each component is weighed separately, is the most accurate and is used for production of Proton primary standards.
    Gravimetric mixtures are normally certified according to the gravimetric production data and analysed to verify the values.
  • Manometric: International standard 6146
    Mixture produce according to the manometric method(partial pressure of each component is measured).These products are certified based on the results from the analysis.
  • Volumetric: International standard 6144
    The volumetric method (volume of each component is measured).These products are also certified on the basis on data from the analysis.
    • Order
    • Choice of cylinder, valve and raw material quality. filling parameters determined
    • Control and primary treatment of cylinders
    • Filling of gas components
    • Homogenising
    • Analysis
    • Final control and certification
    • Dispatch
All stages of the production process, from receipt of the order to dispatch of the product, are subjected to strict quality assurance requirements. The production of special gas compounds is certified pursuant to ISO 9002.

Why Accuracy

  • High performance gas analyzers need high quality gases
  • More cost effective process (higher yield)
  • Optimal process conditions (less maintenance, less shut down)
  • Reliability of the products
  • Better products give better prices

How do we achieve Accuracy

  • Accurate Analysis of Raw Materials
  • Accurate Production Methods
  • Passivation of Cylinder Inner Surface
  • Avoid Chemical / Physical Interaction
  • Using Standard Traceable to NPL/NIST Standards

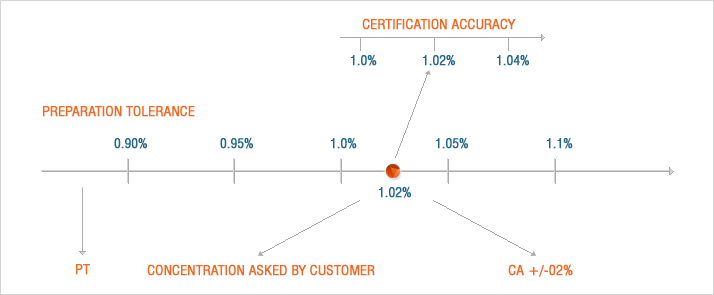

Preparation Tolerance and Certification Accuracy

In addition to the composition of a mixture two important factors are preparation tolerance and certification accuracy.

Preparation Tolerance (PT) is a measure of the closeness of our product concentration to the ordered concentration. It varies with concentration but can also be specified if required. The following table will indicate our standard PT.

Standard Specifications for Calibration Gas, Specialty Gas, Natural Gas,
Petrochemical and Refinery Gas Standards
Product Grade Concentration Range Blend Tolerance (1) Certification Accuracy (1)
Primary Below 5ppm (2) ± 10 to 15% ± 1 to 2%
  5 to 100 ppm ± 5% ± 1%
  101 to 5000 ppm ± 5% ± 1%
  Above 0.5% ± 2% ± 1%(1)
Certified Below 5ppm (2) ± 15 to 20% ± 2 to 5%
  5 to 100 ppm ± 10% ± 2%
  101 to 5000 ppm ± 10% ± 2%
  Above 0.5% ± 5% ± 2%
Gravimetric (3) Below 5ppm (2) ± 20% Non-Certified by independent
laboratory analysis.
Concentration Ranges are
reported based on the
gravimetric values.
  101 to 5000 ppm ± 10%
  Above 0.5% ±

  • The Blend Tolerances and Certification Accuracy are expressed as the relative percentage deviation from the requested concentration of the individual components. Certification Accuracy for Primary Standards over 2% concentration will be 0.02% absolute of the reported value.
  • Tolerances of minor components below 5ppm may vary depending on the component and the complexity of the mixture.
  • Each component is reported at the requested concentration the % stated for the concentration range.

Certification accuracy is our guarantee of the minimum deviation from certified values in the actual value.
